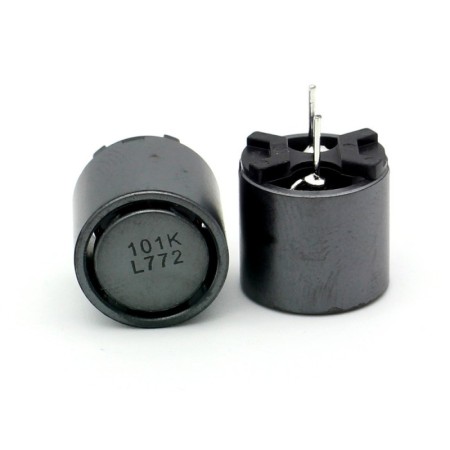

Power Inductance 100uH ±10% 2.9A DCR 0.068 Ohm - SUMIDA - 130ind001

Fabricant: SUMIDA

Réference Fabricant.: RCR1616NP-101K

Boitier / Montage: RADIAL
RoHS: Oui
Qté : 1 pièce

Inductance: 100 uH

Rated Current: 2.9 A

D.C.R.(Max)at 20°C: 68 mohm(0.068 ohm)

Material Core: Ferrite Drum Core Construction

Width x Long x Height(Max): 16.5 x 16.5 x 16.5 mm.

Pin Diameter: 0.8 mm.

Pin Spacing: 7.5 mm.
Operating Temperature: -30°C to +100°C
Series: RCR1616
Tolerance: ±10%

 Applications

Idéalement utilisé dans les imprimantes, TV LCD, DVD, photocopieur.. etc ..
